MATERIAL OF CONSTRUCTION

REGULAR SUPPLY

1. Pump body : C. I. Gr. FG 200
2. Impeller : C. I. Gr. FG 200
3. Neck ring : SS304
4. Stuffing housing : C. I. Gr. FG 200
5. Bearing housing : C. I. Gr. FG 200
6. Shaft : SS-410
7. Shaft sleeve : SS-410
8. Gland packing : Graphic Asbestos
9. Mechanical seal : Carbon Ceramic

OPTIONAL SUPPLY

1. Impeller: Bronze - Shaft: SS-316 (CF 8M) -
2. Gland Packing: Teflone

APPLICATIONS

Chemicals, petrochemicals, refineries, sugar, paper, laminates.
Drip irrigation, water supply and building services.
Condensate handling, fire fighting systems, environmental.
Circulation of water in industries, air conditioning plants, power stations, mining, sprinkler systems, pumping brines,
Industries, rubber, organic and inorganic chemicals, dam water, food industries, salt, textiles etc.

FEATURES

The back pull-out design enables removal of the motor, coupling, bearing housing and impeller without hampering the existing pump housing or pipe work.
The pumps are of single stage, single suction, and horizontal shaft type. The rpm operation range is 1450 rpm and 2900 rpm at 50 hz.
This has volute type, end suction casing with top centerline discharge. Suction, discharge nozzles and the supporting feet are cast integral with the casing.
Impeller is enclosed type dynamically balanced.
Direction of rotation is clockwise when viewed from the driving end.
These pumps can be coupled with electric motors and engines either directly or by belt drives.

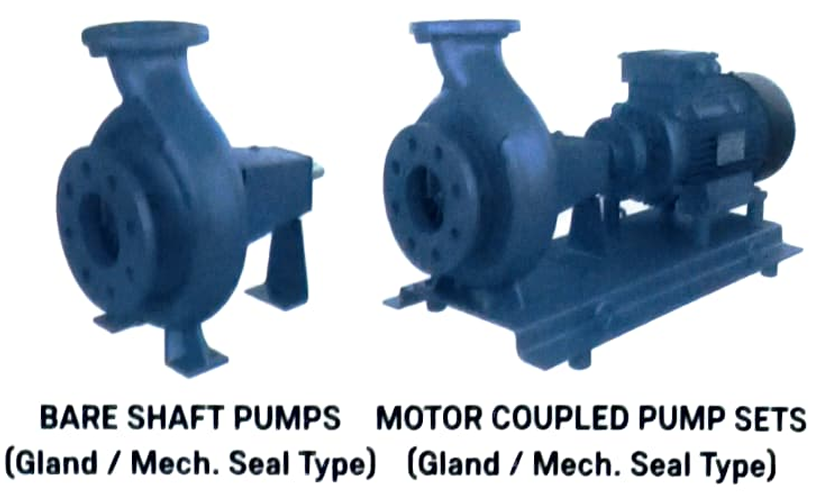

Pumps are available in bare shaft, motor coupled.
Available with mechanical and gland seal
