MATERIAL OF CONSTRUCTION
REGULAR SUPPLY
Pump/motor body: C. I, Gr. FG 200
Impeller: C. I. Gr. FG 200
Wear plate: C. I. Gr. FG 200
Impeller ring: C. I. Gr. FG 200
Shaft: SS-410
Shaft sleeve: SS-410
Stamping: CRNGO, M-45 Grade
Sealing: Gland/Mechanical seal

OPTIONAL SUPPLY
Body: SS 316-(02 TO 7.5 HP)
Impeller: SS-304 (CF 8)/SS-316 (CF 8M)/Bronze
Impeller ring: SS-304 (CF 8)/SS-316 (CF 8M)/Bronze
Wear plate: SS-304 (CF 8)/SS-316 (CFBM) / Bronze
Shaft: SS-304 (CF 8)/SS-316 (CF8M)/410 for All monoblock
Shaft sleeve: SS-304 (CF 8)/SS-316 (CF 8M)
Gland packing: Teflone

APPLICATIONS
Marine - Loading & unloading, bilge pumping, washing, fire fighting, stripping, sanitary duty and circulation.

Construction industry - Dewatering excavation, canals or ponds, ground water dewatering with well point system or drains, water supply from wells or canals, hosing down concrete castings.

Agriculture - Surface irrigation, liquid manure oxygenation, transfer and spraying liquid manure or fertilizers, distribution of liquid animal feed, transfer of must, washing.

Industry - Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension, clean or dirty low viscosity petroleum product or solvents, milk of lime, caustic soda. Washing, cooling, circulation, smoke scrubbing, emergency duty. Pumping light chemical, sewage, ash water. Tiles, marble & ceramic factories, effluent plants. Industries for clear water handling at high pressures.

Mobile machinery - Cooling water for marine engines and shovels. Any application where priming is to be avoided

Waste treatment - Pumping polluted, hot or corrosive waste water containing sand, mud or solids in suspension, dosing neutralizing liquids, pumping out se led sludge.

Public utilities - For pumping muddy water, sewage, polluted liquids, solid and in swimming pool. Dewatering basements, trenches and construction sites. Dewatering from basements, multi storey, shopping malls, godowns etc. Flood drainage, sewage pumping, fire fighting and recovery of dangerous liquids.

FEATURES
Standard design and performance as per international market.
Less manual intervention with automatic air release mechanism
Replacing foot valve by modern technologies. Easy availability of spares.
Impeller is designed semi opened/ opened for handle contamination. Can handle solid particles up to 40 mm.
Back pull out design for ease of repair without disturbing the pipe lines.
Motors of mono block pumps are designed to withstand voltage fluctuation (from 180 to 240 volts for single phase pumps) & (from 350 to 450 volts for three phase pumps)
All pumps are available with both gland packing and mechanical seal variants.

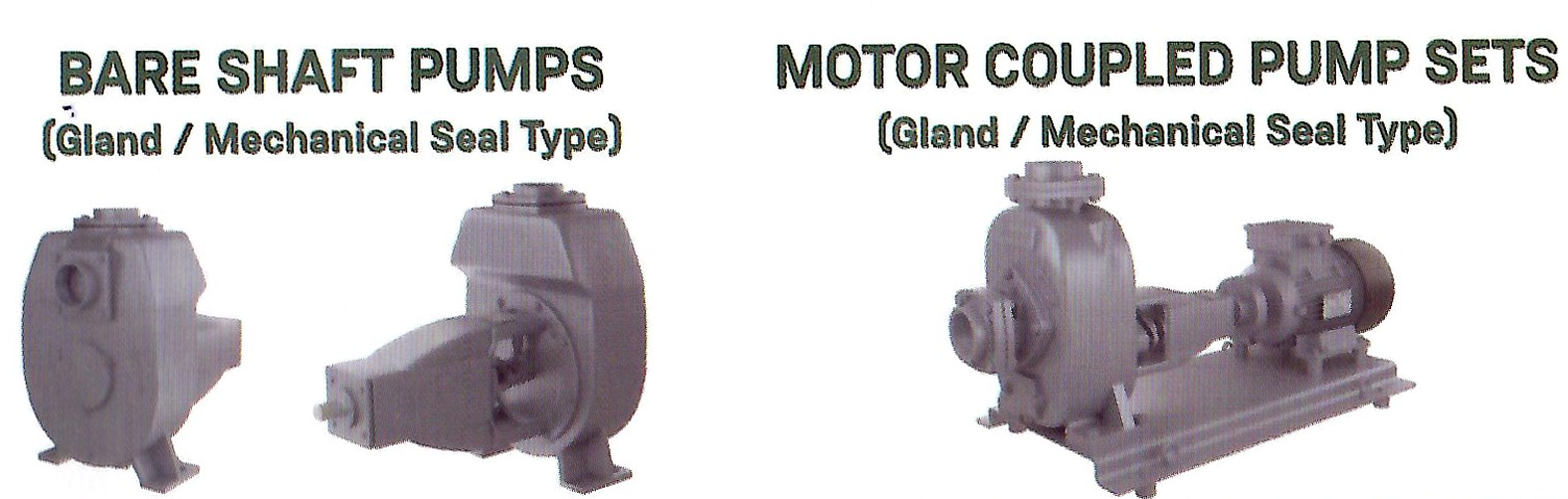

Our portfolio includes bare shaft, mono block motor coupled and engined coupled pumps.
Dynamically balanced rotating parts.
Long product life
